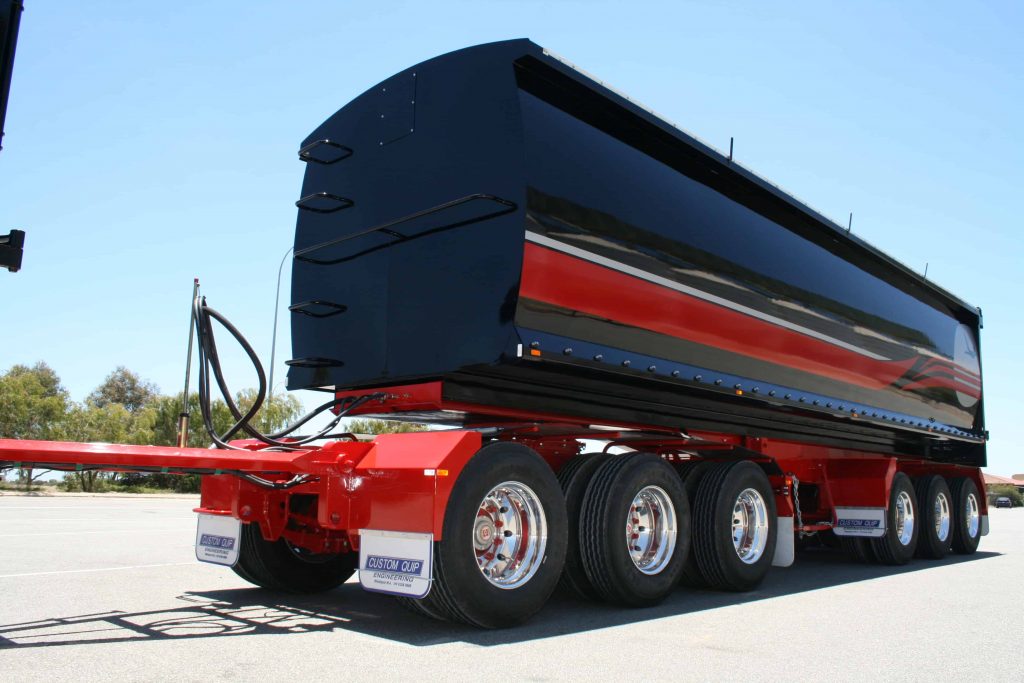

Steel Grain Tipper

CQE steel grain trailers are manufactured using high quality tensile steel, are strong, affordable and designed to weather the harshest of Australian conditions.

Each product is manufactured with the highest level of workmanship, using top quality products to ensure long lasting equipment.



  • 3 mtrs long | 2 mtrs high
  • 2mm Hardox 450 plate sides, one piece sides
  • 2mm Hardox 450 plate floor, 75 x 50 x 3 RHS cross bearers
  • 4mm pressed Hardox ¾ rear door (full door optional)
  • 200 channel main runners
  • Heavy duty rolled roof bows
  • Heavy duty 900g roll tarp with reinforcing on ridge poles and centre poles
  • Ally bagging door
  • Silicon door seal
  • Air tail gate
  • Hella LED lights
  • Wired using 2 core earth return wiring system
  • Front and rear aluminium ladders


  • 130 x 8 Domex flat bar strapping
  • 4mm Domex 700 plate webs
  • K-Hitch bolt in 90mm single position king pin with block
  • K-Hitch 9’1” 8 leaf spring suspension
  • K-Hitch 10 stud drum brake axles including hubo
  • K-Hitch 2 speed landing leg
  • 12 x Advanced *22.5 tyres
  • 12 x 10 stud 285 steel rims
  • All rubber mudguards with quarter guards
  • Laser wheel alignment
  • ADR approved WABCO brake kit with yard release
  • Wired to suit road train specs in conduit
  • All compliance plates supplied and pit inspections completed
  • Dual tyre carrier (swinging)
  • 50 tonne custom internal hoist with all hosing and grease point


  • Sandblasted to grade 2.5 (blasting included inside bin)
  • Prime in Protec EX 408 prime
  • Wattyl tank liner on bowl internal surfaces
  • Top coat in Protec 625 two pack

More customised options available

Custom Quip Engineering design and build products suitable for Australian conditions, so If you want a tough, reliable trailer and want to support local Australian business, call us today.
